[edit] Arduino pots shields

So we all love to keep in touch, but dont we all wish to be in full control of our own phone network. If th answer is yes then check this out.

[edit] Opto shield

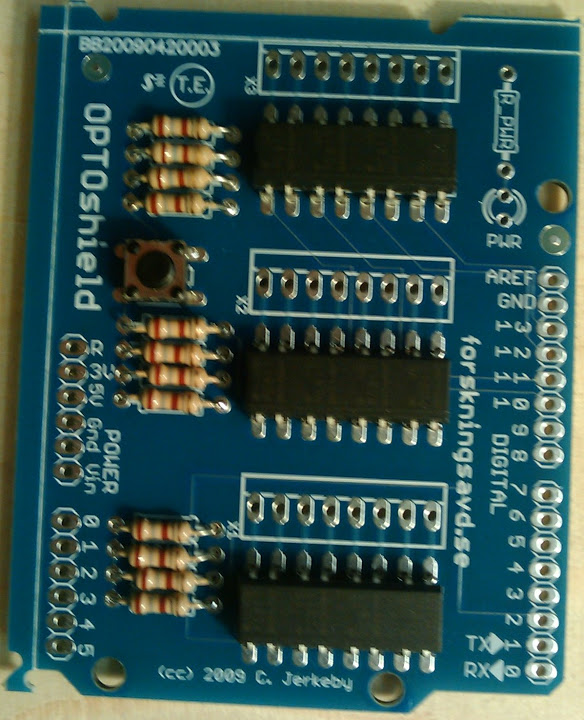

OPTOshield1

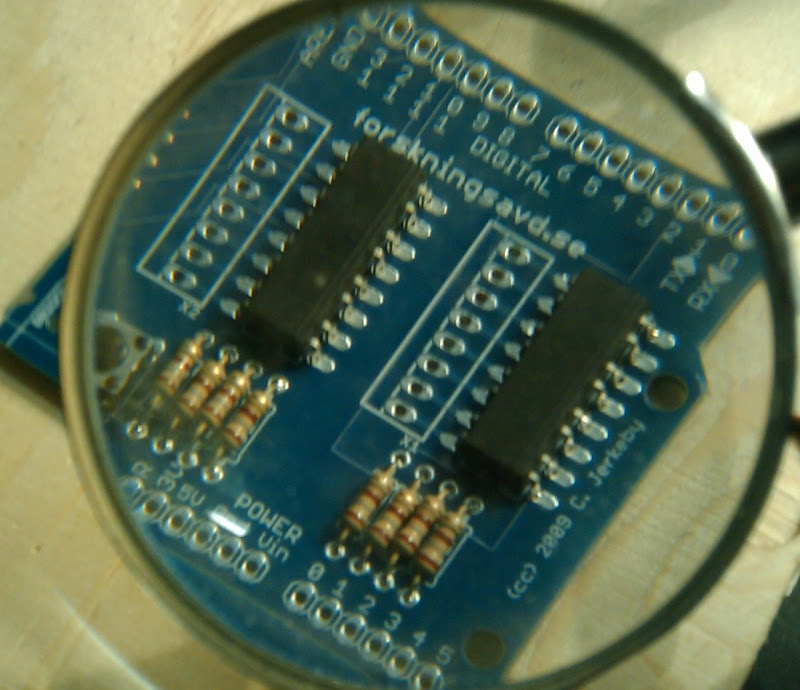

OPTOshield2

[edit] Background

The optoshield was designed by Linda and Kugg to work as a intermediate interface between arduino and phone module. It consists of 12 optocouplers one for each digital output on the arduino board.

[edit] Description

The optoshield is a general purpose shield and may be used for relaying 12 different circuits.

[edit] PhoneSHIELD

Kugg and Kepyla is working on a PhoneSHIELD for arduino that can generate the dtmf tones in cpu and convert the power from phone line to run the arduino. GIT project page

[edit] Other stuff

Village telco
